Dynamic compression represents one of the fundamental tools in the professional arsenal of any audio engineer. The ability to competently apply this technology is a critically important competency for every modern music producer and sound engineer.

---

In the realm of contemporary music production, the term "compression" refers to the process of deliberately reducing the amplitude parameters (volume level) of the most intense sections of an audio signal. For clarity, one can envision a compressor as an automated channel fader that smoothly lowers when the incoming signal reaches excessive loudness, and gradually returns to its original position when the sound intensity decreases. Thanks to this operational mechanism, a compressor effectively narrows the dynamic range of the processed audio material, minimizing the contrast between the quietest moments and the loudest peak values of the signal.


By limiting the peak amplitude of an audio signal, compressors provide the opportunity to make the final mix or an individual instrument denser, richer, and perceptually louder. This phenomenon is explained by the fact that it is precisely the maximum signal peaks that determine the limit of gain that can be applied to an audio track before clipping (digital distortion) occurs, whereas the subjective perception of loudness is primarily governed by the average signal level. By reducing peak amplitude values, we gain the technical ability to raise the average level, which ultimately results in a more powerful and expressive sound.

When Is It Appropriate to Use Compression?​

Compression technology can be applied at various stages of the audio recording production cycle. In most standard scenarios, our goal is to process the signal as a whole. This is precisely why a compressor is most frequently used as an insert effect, although professionals also have more sophisticated techniques at their disposal that involve alternative signal routing and patching configurations (in particular, parallel compression techniques and multiband dynamic processing).

During the recording of live instruments and vocals, it can be beneficial to apply compression directly at the input stage. This approach allows for effective control of sudden loud peaks, providing the opportunity to increase the preamp gain to obtain a more detailed and saturated recorded signal. Nevertheless, at this stage, it is critically important to exercise moderation. Excessive or incorrect compression applied during recording will significantly limit your creative options at the mixing stage, as it irreversibly alters the original source signal.

Such preliminary input signal processing is relevant for both analog and digital recording methods; however, in the case of digital format, compression must necessarily be applied before the analog-to-digital conversion stage. This function can be performed by dedicated external analog compressors; many modern microphone preamps also feature built-in compression modules. Select next-generation audio interface models also offer similar capabilities.

At the mix stage, compressors continue to perform the key function of equalizing the dynamic characteristics of individual composition elements, while simultaneously addressing secondary yet equally important tasks: adding density, expressiveness, "punch," and attack to those sections where artistically justified. As a rule, the final mix is also subjected to a certain degree of compression-either during mixing, during mastering, or sequentially in both cases. The primary goal of applying compression to a finished mix is to achieve optimal loudness and dynamic cohesion that ensures comfortable listening across various playback systems.

Fundamental Parameters and Operating Principles of Compressors​

Despite significant differences in construction, user interfaces, and technical specifications, all compressors operate based on unified fundamental concepts and are controlled by a similar set of parameters. It is important to note: while some compressor models provide the user with direct and detailed control over most or all of the parameters listed below, others may offer only a few basic controls, while still others employ completely unique, specialized settings.

Keep in mind: the theoretical concepts presented below are universal and applicable to all types of compressors in principle, even if their practical implementation in specific devices or plugins differs visually and functionally.

At its fundamental core, compression represents a process that modifies the proportional relationship between the amplitude of the incoming signal and the amplitude of the outgoing, processed signal. This relationship is quantitatively expressed through the compression ratio parameter. As an example: a 3:1 ratio is interpreted as follows-for every 3-decibel increase in the input signal amplitude, the output signal amplitude will increase by only 1 decibel.

Compression ratio values are most commonly visualized via a specialized graphical display called a compression curve, which clearly demonstrates the correlation between input amplitude growth and the corresponding change in output amplitude.

In the vast majority of practical applications, we configure the compressor to affect exclusively the loudest segments of the audio material. The transition point between the uncompressed zone and the zone of active compression application is called the threshold. When the signal amplitude remains below the set threshold, compression is not engaged; once the signal exceeds the threshold value, the compressor begins reducing the output signal amplitude in strict accordance with the predetermined ratio.

The threshold creates a characteristic breakpoint on the compression curve graph, resulting in a shape resembling a bent leg-which is precisely why the point where this bend occurs has earned the professional designation "knee" of the compressor (yes, this is an official term used throughout the industry!). The illustrated example demonstrates a "hard knee" configuration, where the transition from no compression to full application of the specified ratio occurs instantly and linearly.

In real-world practice, many modern compressors begin gradually increasing the compression ratio even before the signal amplitude reaches the threshold, achieving the full ratio only when the signal level substantially exceeds the threshold value. This approach creates a smooth, rounded bend around the threshold area on the compression curve graph and is referred to as a "soft knee"-the more gradual the bend, the "softer" the knee. Softer knee settings generally deliver more natural and transparent processing results, whereas harder configurations are optimally suited for working with signals containing numerous pronounced transients or aggressive dynamic spikes.

Certain compressor models feature an adjustable knee parameter, allowing the user to independently select the most appropriate option depending on the specific task and the character of the processed material. However, in most cases, knee characteristics are fixed and built into the compressor's architectural concept at the design stage.

With a soft knee setting, compression initiates below the threshold and reaches the full ratio only when the amplitude significantly exceeds the threshold value

The attack time and release time parameters provide an additional layer of detailed control and artistic shaping over the onset and conclusion of the full-ratio compression process. Attack time defines the time interval required to reach the full compression ratio after the signal has exceeded the threshold value. Similarly, release time denotes the duration it takes for the compressor to return to the neutral 1:1 ratio when the input amplitude falls below the set threshold.

Most compressors are equipped with a control labeled "make-up gain," which is used to restore the loudness level reduced during the compression process; an automatic gain compensation option is also quite commonly available. Any compressor of professional caliber should feature an output level control, which-in the absence of a dedicated make-up gain knob-can perform a similar function of compensating for loudness losses.

The effect of compression is not always obvious during subjective listening, especially under conditions where auditory perception becomes fatigued during extended recording or mixing sessions. This is precisely why it is critically important to develop the habit of monitoring gain reduction (GR) indicators present in the interface of most compressors. These indicators may have various visual implementations-most commonly as a vertical bar graph or a classic analog-style VU meter-and generally operate in a direction opposite to standard level meters (i.e., displaying reduction from top to bottom or right to left, rather than growth from bottom to top or left to right). Professional producers often repeat the phrase "trust your ears," however, in the context of working with compression, you will often need to rely on GR meter readings no less than on subjective auditory perception.

Classification and Main Types of Compressors​

Contemporary audio equipment recognizes four fundamental types of analog compressors, and virtually every digital compressor available on the market represents an emulation or evolution of one of these architectures. Fundamental differences in circuit design and physical operating principles of these compressors exert substantial influence on their sonic coloration and dynamic behavior, endowing each type with unique advantages and certain limitations.

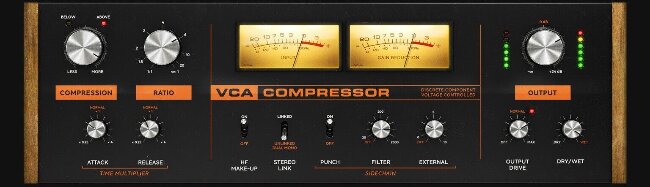

Voltage-Controlled Amplifier (VCA) Compressors​

The most widely prevalent type-the VCA compressor, named as such because the output level is controlled via a voltage-controlled amplifier. Compressors of this type generally provide the most detailed and precise control over the entire dynamic processing workflow, offering the user direct access to most or all of the aforementioned parameters, and for this reason are considered the most flexible and versatile. VCA compressors are characterized by high responsiveness, making them an ideal choice for working with sounds containing numerous pronounced transients: for example, snare drum, clean electric guitar, acoustic guitar, and similar instruments. They also deliver excellent results when tightening and stabilizing bass guitar and kick drum.

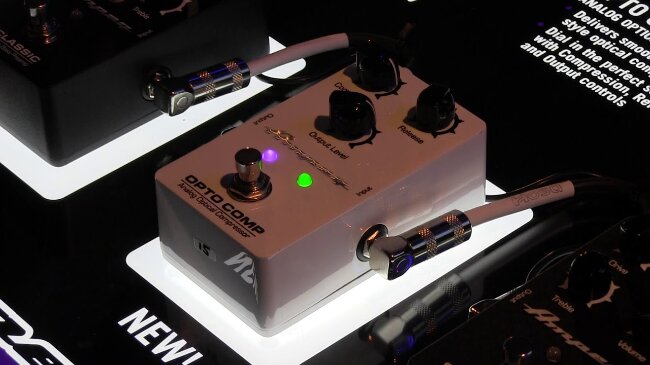

Optical Compressors (Opto)​

At the constructive core of an optical compressor lies an optocoupler-essentially a combination of a light-emitting diode and a light-dependent resistor housed within a single compact enclosure. The amplitude of the input audio signal controls the LED's brightness intensity, which in turn causes a change in the electrical resistance of the photoresistor. This variable resistance is then used to smoothly regulate the compressor's output signal level.

Optical compressors are capable of delivering exceptionally natural, musical, and smooth compression even under heavy processing demands, making them particularly sought-after for processing finished mixes and mastering tasks. They are also excellently suited for preliminary input signal processing when recording vocals and acoustic instruments.

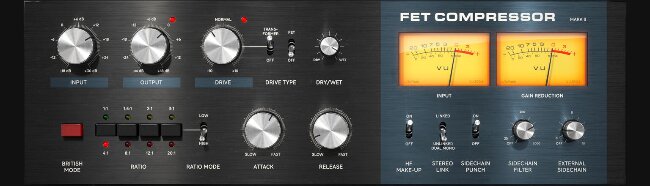

Field-Effect Transistor (FET) Compressors​

FET compressors utilize a field-effect transistor as the key element of their dynamic control circuitry, endowing them with exceptional responsiveness to aggressive and fast transients characteristic of drum kits, overdriven electric guitars, and various percussion instruments. They also excel at smoothing the dynamics of sources possessing a wide dynamic range, such as vocal performances (both singing and spoken word), piano, synthesizers, and other expressive instruments.

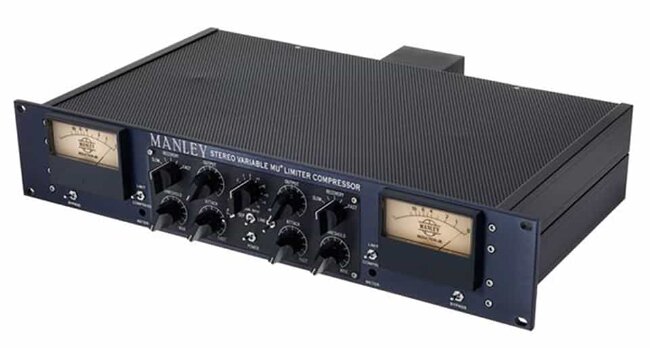

Variable Mu Compressors​

Exotically named and relatively uncommon in mainstream practice, the Variable Mu compressor employs a vacuum tube as the controlling element for regulating the output signal, imparting characteristic tube warmth, harmonic richness, and unique coloration to the processed sound. Compressors of this type typically offer a degree of user control comparable to VCA compressors, while simultaneously possessing a significantly smoother, more transparent, and musical sonic character. This makes them an ideal choice for final processing of completed mixes and professional mastering.

Begin Your Practical Journey into Compression!​

The most effective way to deeply understand and master the art of compression is through regular, mindful practice. You will inevitably make mistakes during the learning process, but it is precisely from these mistakes that you will extract the most valuable lessons-far more significant than from initially successful attempts-so do not be afraid to experiment and err! Simply keep working, analyzing results, and refining your skills, and over time, applying compression will become as instinctive, intuitive, and natural a process as adjusting a volume fader or configuring reverb parameters.
