Let's be honest, darlings: vinyl records and our beloved speakers don't actually need indicators at all. For an amplifier, a graceful knob with a barely-there marker and a few source-selection buttons are quite sufficient; a tuner is perfectly content with a softly glowing, embracing scale; and a tape recorder manages with a simple mechanical counter. But then again, take a look around: today, nearly every modern component boasts a full-color touchscreen display spanning the entire front panel, opening endless possibilities for visualisation. Yet between these two extremes-the ascetic classics and digital abundance-there existed, and still exist, other, sometimes truly exotic ways to make sound visible. And you know what's most surprising? Some of them still make our hearts skip a beat.

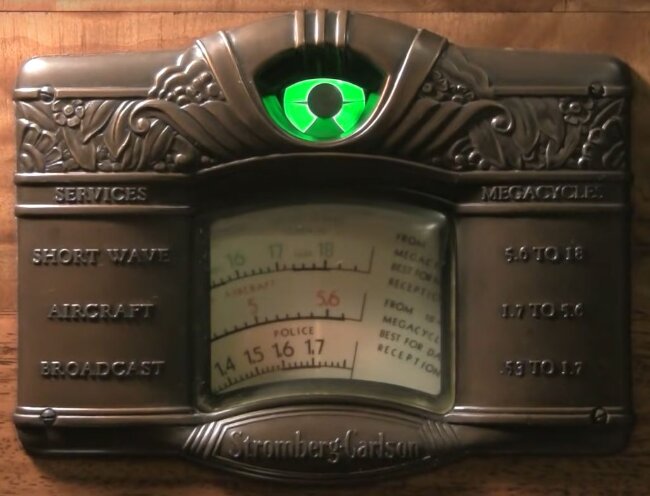

The Magic Eye: When Technology Looks Back at You​

Picture this: 1932, America, the era of jazz and rapid advancement in radio technology. It was then that the talented engineer Allen Balcom DuMont gifted the world an invention that can rightfully be called one of the most poetic in the history of electronics. Radio receivers were becoming increasingly complex, and listeners needed a visual, almost intuitively understandable way to know: yes, I've truly caught the wave, I'm hearing exactly the station I wanted. Thus was born the electron-ray tuning indicator, which very soon earned its charming, almost fairy-tale name-the "magic eye." The first truly mass-produced tube was the RCA 6E5, and soon European masters joined the chorus-such as the legendary EM1 from Telefunken.

The operating principle of this marvel is elegance itself. Inside the fragile glass envelope, like a miniature universe, sat a cathode, a control electrode, and a fluorescent screen. And here's what happens: when voltage correlated with the received signal strength is applied to the control grid, the shape of the glowing sector on the screen begins to change. With perfect tuning, these sectors gently converge, forming a flawlessly bright, closed circle or a slender, elegant slit. For us, the listeners, it looked like pure magic: a green petal of light that seemed to breathe in rhythm with our movements, transforming the dry, technical procedure of adjusting the local oscillator into a mesmerising, almost ritualistic dance.

Initially, the magic eye served as a faithful assistant-a signal strength and tuning accuracy indicator in radio receivers. But, as often happens with truly successful solutions, its talents were soon recognised in other fields as well. Quite rapidly, it began appearing in consumer tape recorders as a recording level indicator. In pre-war and post-war models, it frequently and successfully replaced moving-coil meters-not only because it was cheaper, but also because it looked far more striking, adding that special sparkle to the equipment. In mid-century audio gear, this glowing sector became a kind of symbol of "high technology": it could be found on amplifiers, tuners, and radiograms from manufacturers of all stripes-from refined European houses to bold American brands.


Incidentally, there was an astonishing variety of these tubes! Some delighted the eye with a circular screen, others offered a linear scale; they differed in sensitivity, base type, and even the shape of the luminous sector. In the States, the 6E5 and 6U5 series were particularly beloved, while in Europe, the EM80, EM84 family and their numerous derivatives captured hearts. Over time, it became clear that linear indicators were more convenient for displaying signal levels, especially in tape recorders, where a more familiar, intuitive "scale" was needed rather than an abstract-however beautiful-sector.

By the early 1970s, the magic eye, alas, began yielding ground to more practical transistor-based indicators and LED bar graphs. But-and this is so important!-in tube audio equipment, it experienced a truly triumphant second birth. Modern manufacturers use it now less for functionality and more as a subtle aesthetic accent, emphasising the connection to that golden age of radio technology. The soft, warm green glow remains not merely a level indicator, but a genuine symbol of an era when electronics first learned to be not only useful, but truly spectacular, almost romantic.

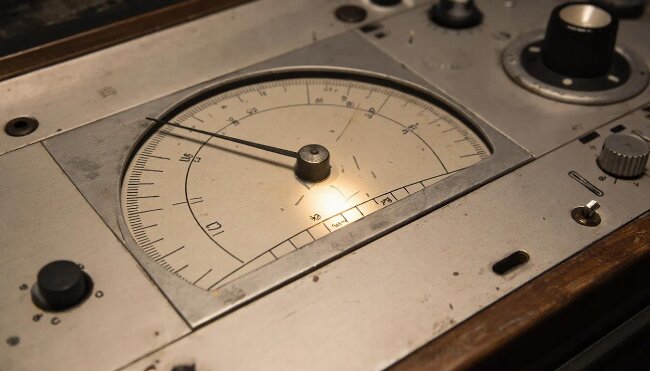

The Moving-Coil Meter: A Needle's Dance You Could Watch Forever​

You know, moving-coil indicators were used for physical experiments as far back as the early 19th century-imagine the rich history they carry! Yet the very level meter we so tenderly call the VU meter emerged during the formative years of professional broadcasting, when every detail mattered. In the late 1930s, engineers from respected companies like CBS, NBC, and the famed Bell Telephone Laboratories joined forces to solve one very human problem: how to standardise volume control in studios? The issue was that different stations transmitted signals at wildly varying levels, and poor listeners constantly faced abrupt, unpleasant jumps in loudness. And so, in 1940, a unified standard was adopted: the Volume Unit-a conditional level reference tied to the signal's average value. The instrument itself received that now-legendary scale with the crisp "0 VU" mark.


At the heart of this meter lies a precision moving-coil microammeter with damping, complemented by a rectifier and a meticulously calibrated scale. But its defining feature is its delicate inertia: the needle responds not to instantaneous, sharp peaks, but to the averaged signal level, with a carefully calibrated attack and decay time. Thanks to this, the meter displays precisely the loudness we subjectively perceive, rather than fleeting spikes that our ears, for the most part, barely register. And it is precisely this noble "slowness," this fluidity, that made the VU meter an indispensable, almost cult instrument for sound engineers of the analog recording era.

Over time, of course, many variations appeared: compact indicators for mixing consoles, large, imposing studio meters with soft backlighting, and modifications with different ballistic characteristics-such as the more peak-sensitive PPM meters. Yet the classic VU meter carefully preserved its characteristic scale from −20 to +3 VU and that very recognisable amber or white illumination, gradually becoming a visual symbol of mid-20th-century studio technology-an era when sound was still tangible.

In audio equipment, the moving-coil indicator fulfilled several important roles, each worthy of separate mention. In tape recorders, it helped set the optimal recording level, gently avoiding tape saturation. In broadcasting studios, it served as a guarantor of consistent loudness, so listeners wouldn't flinch at unexpected volume shifts. And in home audio equipment of half a century ago, the VU meter became a true element of brand identity: its gently swaying, almost living needle created a sense of "alive," breathing sound, making the invisible electrical signal visible, nearly tactile. Even with the advent of bright LED bar graphs and cool digital displays, the moving-coil indicator never vanished entirely-it simply ascended to the realm of timeless values.

In modern tube and retro-oriented equipment, it is often used as an elegant aesthetic quotation from the analog recording era, tenderly reminding us of a time when sound control was not only an exact science but also a nearly mechanical art-the art of observing the smooth, hypnotic motion of a slender, graceful needle.

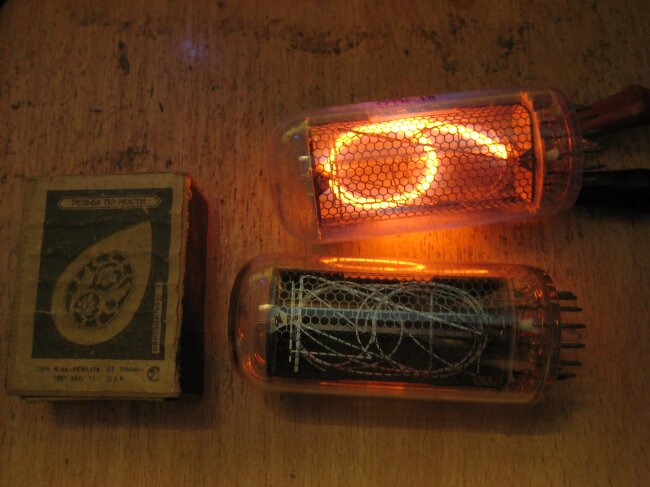

The Gas-Discharge Indicator: Neon Digits Floating in Glass​

Let's transport ourselves to the early 1950s-a time when electronic computers occupied entire halls, and engineers faced an unexpectedly "human," almost domestic problem: how to display a number conveniently, clearly, and beautifully? The answer was born in the creative laboratories of the Haydu brothers' company, where in 1952 the first production gas-discharge numeric indicator was created. Rights to this elegant development were soon acquired by the Burroughs Corporation, and it was under their brand that these tubes received their commercial, now-legendary name-Nixie, a contraction of Numerical Indicator eXperimental No. 1. Sounds like the name of a starship, doesn't it?

The indicator's construction was poetic in its own way. Inside a glass envelope filled with neon or a special mixture of inert gases sat a set of metal cathodes shaped like numerals, carefully stacked one behind another, and a common anode in the form of a fine mesh. When a voltage of approximately 150-180 V was applied, a soft glow discharge ignited around the selected cathode, and the desired digit flared to life with a characteristic, warm orange light. Note: this was neither incandescence nor phosphor, as with the magic eye, but precisely a glow discharge, creating an unforgettable sense of a volumetric, almost floating symbol-as if the digit hovered in mid-air, awaiting your gaze.

Initially, Nixie tubes were intended for counters, frequency meters, and early computers, where compact and reliable numeric indication was required. In the 1960s, they became a familiar, almost beloved part of laboratory equipment and measuring instruments, and then, like stars descending from the professional firmament, entered consumer electronics-from desktop calculators to elegant electronic clocks. Variants differed in envelope size, digit height, anode shape, and even glow colour: besides the classic, so cosy orange, versions with argon producing a mysterious violet hue also existed.


In audio equipment, gas-discharge indicators were perhaps used less frequently than moving-coil meters or fluorescent scales, yet they still found their own unique, incomparable place. In professional frequency counters and audio signal generators, they displayed precise frequency values, while in some early digital tuners, they showed the tuned station number. With the development of digital recording and synthesizers, Nixie indicators began appearing in studio devices as a means of displaying parameters, underscoring the technological innovation of the era.

By the 1970s, they were, unfortunately, superseded by more practical LEDs and vacuum-fluorescent displays, which required lower voltages and offered greater longevity. Nevertheless-and this is so inspiring!-in the 21st century, Nixie tubes experienced a truly triumphant second birth, this time as objects of nostalgia and aesthetic admiration. Their warm, neon glow proved to be the perfect symbol of "retrofuturism"-that very feeling when past and future meet at a single point. In the audiophile community, they are frequently used in bespoke amplifiers and DACs more for aesthetics than practical necessity, transforming the simple display of a digit into a small, mesmerising spectacle-nearly as beautiful as the sound the equipment reproduces.

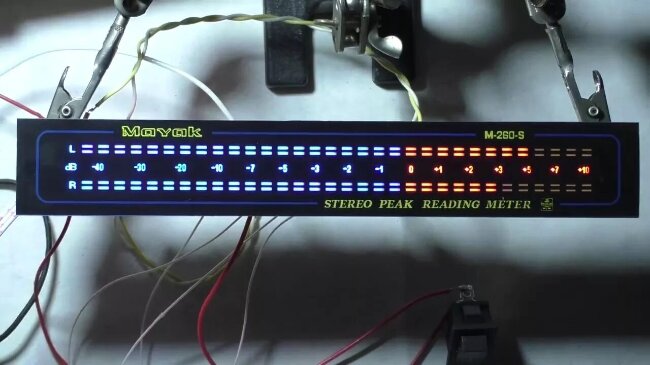

The Bar-Graph Indicator: When Sound Becomes a Dance of Light​

The emergence of the discrete indicator is closely tied to one of the most thrilling transitions in audio history-the shift from electromechanical instruments to semiconductor electronics. If a moving-coil meter required mechanical precision of the highest order and occupied a noticeable, honoured place on the panel, then by the late 1960s, engineers began seeking a more compact, modern, and intuitive way to display signal level. And onto the stage stepped-they were here all along-light-emitting diodes. The development of this technology proved decisive: the first practical, human-visible LEDs were demonstrated in 1962 by an engineer at General Electric. By the early 1970s, it became possible to construct linear indicators from a chain of bright, crisp points of light.

But the true, one might say revolutionary, breakthrough came in 1976, when National Semiconductor introduced to the world the specialised integrated circuit LM3914. It allowed direct connection of an LED array and display of voltage level either as an elegant "running dot" or as a continuous, flowing band of light. Thus was born that now-familiar discrete bar-graph indicator-a row of individual segments, each illuminating when a certain signal threshold is reached, like little lights kindling one after another in time with the music.

Unlike a moving-coil meter, such a scale responded faster, more dynamically, and could be calibrated to various standards-from условные децибел (relative decibels) to peak values. Designers gained incredible freedom: to vary the number of segments, experiment with their colour and operating algorithm. In audio equipment, this meant more precise, careful control of amplifier or magnetic tape overload. Moreover, LEDs were durable, vibration-resistant, and required far less precious panel space-a true boon for designers!


In the 1980s, discrete bar-graph indicators became the visual symbol of high-tech, an era of bold forms and vibrant solutions. Equalisers with multicoloured, dancing columns, cassette decks with dynamically flickering level scales, amplifiers with bright, expressive peak indicators-all this created a sense of technological prowess, dynamism, life. In professional equipment, linear LED meters gradually displaced VU meters wherever precise, instantaneous capture of brief peaks was required. Later, individual LEDs gave way to integrated light modules and vacuum-fluorescent displays, yet the principle of discrete indication-dividing the scale into threshold steps-endured, becoming a classic.

Today, such indicators may be implemented on liquid-crystal or modern OLED screens, yet the very idea remains unchanged, almost philosophical: to transform the continuous, flowing audio signal into a clear, comprehensible sequence of luminous steps. A discrete scale does not merely inform-it visualises sound, turning abstract amplitude into a rhythmic, captivating play of light that has accompanied music in studios and our cosy home systems for over half a century, making every chord just a little more tangible.

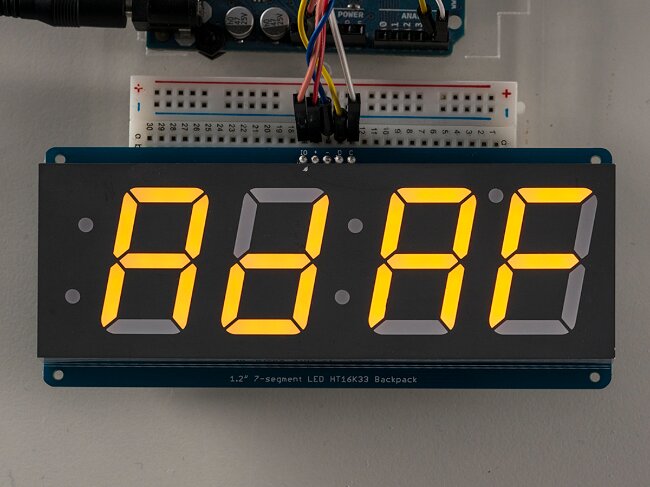

The Segment Display: When Digits Gain Character​

The digital indicator was born from a very understandable, almost human desire-to make a number as simple, clear, and unambiguous as possible to perceive. Unlike gas-discharge tubes with ready-made numeral-shaped cathodes, the new, bold idea was to form any symbol from a set of glowing segments, like an artist sketching a letter with a few deft strokes. The concept of decomposing a digit into segments was discussed as early as the mid-20th century in connection with the rapid development of computing technology, yet practical, elegant implementation became possible only after the advent of compact, reliable light sources. In the 1960s, when General Electric demonstrated the first efficient visible LED, it became finally clear: digital indication could be made solid-state, reliable, economical-and at the same time, truly elegant.

The classic seven-segment scheme proved optimal-simple and brilliant: seven glowing bars allow display of all decimal digits, and if needed, certain letters as well, opening space for creativity. In early devices, segments were implemented using individual LEDs; later, integrated modules appeared, where all elements were neatly housed in a single, compact package. In parallel, vacuum-fluorescent and liquid-crystal versions evolved, operating on different physical principles yet carefully preserving that same, now-familiar digit geometry.

Initially, segment indicators were intended for calculators, measuring instruments, and electronic clocks, where compact, crisp display of numeric data was required. In audio equipment, they began to be actively used in the 1970s, with the spread of digital tuners and synthesiser-based frequency setting. Instead of a mechanical scale with a moving needle, the user saw a precise, flawless frequency value displayed by glowing, star-like digits. This changed the very philosophy of interaction with the device: tuning became not approximate and intuitive, but discrete, precise, and reproducible-like notes on a sheet of music.


Subsequently, segment displays firmly established themselves in CD players, where they showed track number and playback time, in cassette decks with electronic tape counters, in amplifiers and receivers with digital volume control. Their main advantage lay in the clarity and technological character of the image: even, confident red or green digits underscored the device's belonging to the digital age, an era of precision and control. Unlike a moving-coil indicator or an LED bar graph, a segment display did not visualise signal dynamics but communicated a precise, verified parameter value-be it frequency, level, or time interval-like a faithful assistant who always knows the answer.

Today, the seven-segment aesthetic continues to live-and with what charm!-even on graphical screens, where digits merely imitate that familiar, beloved geometry, although more complex matrices with 9, 14, and 16 elements were later developed. This laconic, expressive method of displaying information became a universal language of electronics, and in audio equipment-a symbol of the transition from analog, intuitive poetry to digital, crystalline precision. And you know what's most beautiful? Both these languages-poetry and precision-still find resonance in our hearts, making the act of listening to music not merely a process, but a truly multifaceted experience.
